CML

CML revolves around three core semantic needs—priority expression of tokens, structural extensibility, and logical orthogonality. From these, five highly expressive and composable semantic structure primitives are abstracted, forming the fundamental units for constructing all logical semantic relationships.

These five structural primitives are categorized into Basic Structures, Composite Structures, and Combinatorial Structures. Basic structures describe simple relationships among semantic tokens and can serve as components of composite structures. Combinatorial structures are higher-level containers that can connect any semantic tokens, basic structures, or composite structures.

a. Supplementary Relationship^{Basic Structure}

The semantic object on the right supplements, explains, or restricts the one on the left. It usually acts as a semantic addition without altering the original structure.

f:A∋B∋C

Expressed using the @ symbol. The further left, the higher the priority, indicating greater weight.

For example:

• name@identity@organization
• name@company@position

Both highlight "name" first, but declare different priority emphases overall.

b. Linear Progression Relationship^{Basic Structure}

An ordered, stepwise semantic relationship. It can express directional flows like progression, transformation chains, causal chains, sequences, type refinement, or lifecycles.

f:A→B→C

Expressed with the . symbol. Whether the left side has slightly higher weight depends on LLM interpretation based on actual semantic tokens.

For example:

• Organism.Animal.Human — focuses on the subclass Human.
• Product Design.Development.Operations — the semantic tokens clearly describe a lifecycle.

c. Parallel Set Relationship^{Basic Structure}

Multiple semantic elements in parallel, like a set, property group, or multi-branch description. No priority or order; elements can be rearranged freely.

f:{A, B, C}

Expressed with the + symbol. No priority difference in weight.

For example:

• Man+Woman — both equally describe the concept of Human.
• Name+Age+Username — registration attributes of an account.

d. Mapping Relationship^{Composite Structure}

A composite correspondence between one semantic structure and another, in key-value form. Both sides can use any combination of the three basic relationships to support two-dimensional semantic expression.

f(A,B) ↦ f(C,D,E)

Expressed with the : symbol. It's like a key-value pair, but more flexible—both key and value can be basic structures, not just semantic tokens.

<key-context-struct>:<value-context-struct>

Examples of valid mapping structures:

• Website:doc-war.com
• Website@doc-war.com:Document Battlefield@Contribute Judgment Value
• AI+LLM:ChatGPT+Claude@v3.7
• ask.answer: What is CML?.CML is a semantic structure language aligned with natural semantics

Special Constraint

CML does not support nested mappings to avoid increasing parsing complexity. For example, expressions like User:ZhangSan:Delete+Query are syntactically invalid.

e. Combination Relationship^{Combine Structure}

Multiple semantic structures combine into a new semantic whole without losing their original meaning. Conversely, they can also be decomposed. Essentially, this acts as a "semantic structure container" capable of computation.

      f(A)+f(B) = f(A+B)
      f(A) = f(A+B) - f(B)


Expressed using a space, which overlays two structures semantically.

Because space has the lowest semantic precedence and is not order-sensitive, it's also used as the overall operator in plaintext CML strings. Concatenating two CML strings with a space produces a valid CML string that retains original semantics.

plaintext(A)+space+plaintext(B) = plaintext(A+space+B)

This feature of lossless restoration—free combination and decomposition—gives CML semantic computation properties, not just semantic expression. It lays a solid foundation for collaborative annotation workflows.

Special Constraint

Because space carries the responsibility of lossless computation, expressions like If User:ZhangSan how about, while syntactically valid, violate the principle of lossless combination. Once split and recombined, the position shift disrupts the original meaning.

Operator Precedence

Relationship operations work similarly to expression parsing in programming languages: a left-to-right lexical scan determines the semantic operation order based on the precedence of relation separators.

CML defines a clear precedence to ensure consistency in semantic interpretation during annotation and inference.

Supplementary Relationshipa > Linear Progression Relationshipb > Parallel Set Relationshipc > Mapping Relationshipd > Combination Relationshipe

Based on semantic expression, two standard CML string marking patterns are defined. The core difference lies in at which stage and in what form the semantic token (semantic_token) itself is marked.

Natural Language Format

The natural language format offers a plain text writing experience for document engineers, suitable for human-readable scenarios.

Semantic tokens (semantic_token) are wrapped using backticks (inline code) in Markdown syntax. Document engineers can use WYSIWYG Markdown editors as a plain text editing environment for semantic structures, allowing for quick and intuitive editing.

For example, writing a plain text string in Markdown:

`token1`.`token2`@`token3`+`token4` `token5`:`token6`

It automatically renders into the following natural semantic effect, making it clear at a glance:

token1.token2@token3+token4 token5:token6

Line Breaks

In natural editing, for readability, humans tend to break long strings into multiple lines rather than using spaces exclusively. Therefore, CML editors should support symbol-equivalent compatibility, automatically converting various line break characters like \n, \r\n, \r into spaces during plain text parsing and storage.

Embedded Backticks

Since backticks have no escape representation, the plain text format follows the de facto standard in the Markdown ecosystem: tokens containing backticks are wrapped with more backticks. For example, the token console.log(`hello,${name}`) should be represented as follows.

```console.log(`hello,${name}`)```

Encoded Format

CML strings with backticks (`), including plus signs and spaces, may cause unexpected parsing boundaries and escape requirements in certain special scenarios. Other separators and internal token values may also be unsafe in URLs, files, keys, or variable naming scenarios.

For example:

• Using backticks in template strings
• Using plus signs or spaces in URLs or regular expressions
• Using backticks in SQL statements or shell scripts
• Nesting with HTML or other formats, especially when the original text of semantic_token itself contains backticks
• ......

Therefore, for embedding, storage, parsing, computation, and naming scenarios, CML defines a safer and more consistent encoded output format.

CML provides multiple encoding scheme options to enhance adaptability in short semantic scenarios, large-scale semantic scenarios, and restricted transmission scenarios.

Encoding Modes

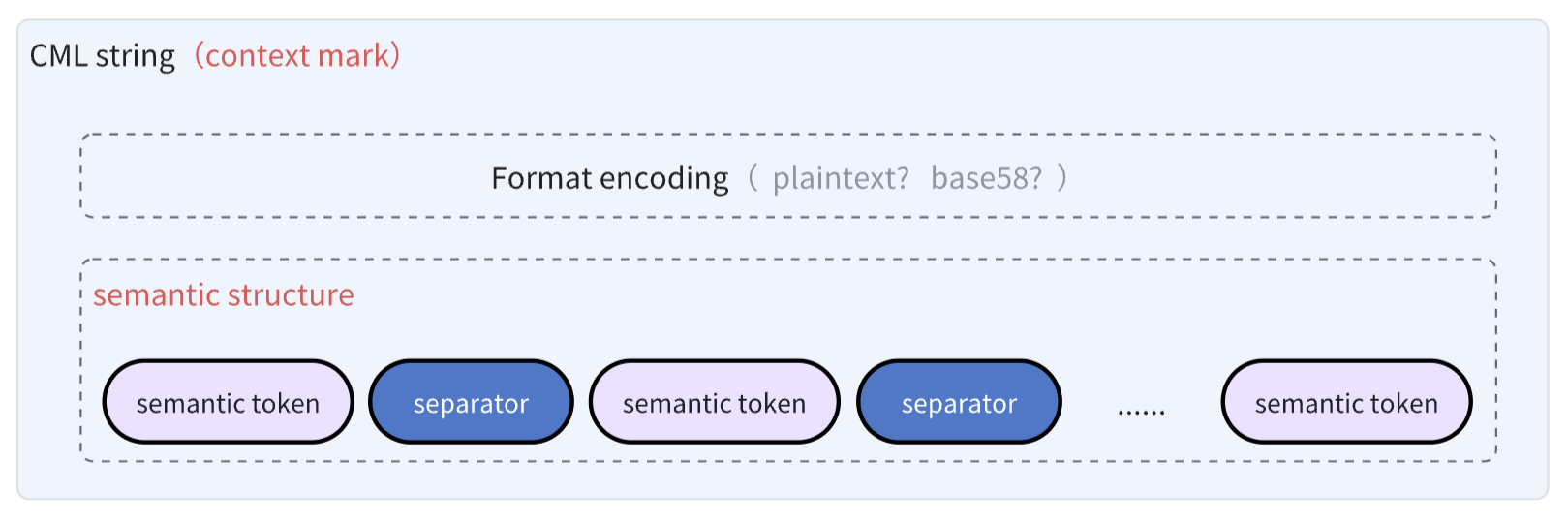

A CML string in any encoding format consists of two parts: <rule_token><semantic_payload>. The first character expresses the rule version, mapping protocol, and more specific encoding mode.

Rule Identifier

The rule identifiers corresponding to the standard rule set are limited to the 26 lowercase letters a-z, reserving 26 combination positions. Uppercase letters are reserved and generally not used. Numbers and other special characters will never be used as identifiers to ensure they are inherently safe for keys and variable names.

Currently, only 4 standard rules are defined.

Mnemonic Notes

• c corresponds to CPU abbreviation, focusing on CPU efficiency;
• q corresponds to QR code abbreviation, intended for QR code scenarios;
• p stands for plaintext;
• a is reserved for Base58, as it was the earliest designed mode, with the highest security universality.

Mode a

Mode a refers to protocol version 1.0 + double-layer Base58 encoding rule.

Example

The following is an encoding example of mode a.

`token1`.`token2`@`token3`+`token4` `token5`:`token6`

Encoding the above plaintext CML string follows these steps:

1. Sequentially extract semantic tokens and relationship separators from the original CML string
2. Encode each semantic token (excluding backticks) into bytes using UTF-8, then Base58 encode the byte stream to generate Base58 strings
3. Reassemble using the original relationship separators

zyvFCwFv.zyvFCwFw@zyvFCwFx+zyvFCwFy zyvFCwFz:zyvFCwG1

4. Encode the entire string again with UTF-8 + Base58 to remove all special characters, obtaining the overall semantic payload

3EkzyE8r5SqnU6KSbLS98LVLJxFoNvskzaazkuEEryWminqaGwJz13YoatvfoRWoDyrofwUCQ

5. Finally, prepend the mode identifier a to form the final CML encoded string

a3EkzyE8r5SqnU6KSbLS98LVLJxFoNvskzaazkuEEryWminqaGwJz13YoatvfoRWoDyrofwUCQ

The decoding process uses the first character for mode routing, restoring the original plaintext format.

Mode c

Mode c refers to protocol version 1.0 + double-layer Base64URL encoding rule.

The process is identical to double-layer Base58 encoding, except the encoding method is changed to Base64URL, reducing the complexity from O(n² log n) to O(n).

Mode q

Mode q refers to protocol version 1.0 + plaintext mixed encoding mode.

Mode q still follows a double-layer encoding architecture but minimizes unnecessary double encoding. Compared to mode a and mode c, the key difference is the dynamic, automatic handling of whether to encode at the token level rather than applying a uniform rule:

• The semantic payload supports <plaintextToken><separator><encodedToken> mixed encoding
• Plaintext is prioritized. For mixed <encodedToken>, a ! suffix indicates to the decoder that further decoding is needed.
• If a token contains any CML separators (@, ., +, :, space) or the encoding mark ! (six characters total), it will be forcibly encoded.
• Both token-level encoding and overall encoding use Base64URL.

Example

For the original CML semantic relationship: `这是明文`@`这要编码！`, the plaintext string is:

`这是明文`@`这要编码！`

Using mode c, the semantic payload before overall encoding is:

6L-Z5piv5piO5paH@6L-Z6KaB57yW56CB77yB

Using mode q, the semantic payload is:

这是明文@6L-Z6KaB57yW56CB77yB!

Then overall encoding:

6L-Z5piv5piO5paHQDZMLVo2S2FCNTd5VzU2Q0I3N3lCIQ

Finally, prepend the mode identifier q to form the final CML encoded string:

q6L-Z5piv5piO5paHQDZMLVo2S2FCNTd5VzU2Q0I3N3lCIQ

Mode p

Mode p refers to protocol version 1.0 + plaintext mixed mode without secondary encoding.

Mode p is a simplified version of mode q, removing the double-layer encoding architecture to minimize entropy.

Same Example

For the original CML semantic relationship: `这是明文`@`这要编码！`

The plaintext string is:

`这是明文`@`这要编码！`

Whether using mode p or q, the semantic payload after encoding is:

这是明文@6L-Z6KaB57yW56CB77yB!

However, mode p does not perform overall encoding, simply prepends the prefix to form the final CML encoded string:

p这是明文@6L-Z6KaB57yW56CB77yB!

The five relationship delimiters are derived from an abstract refinement of the semantic expression structures in natural language, as well as a deep consideration of expression ambiguity and structural controllability.

Natural Language Reference

The five relationship delimiters defined by CML are based on the most fundamental semantic structures implicit in natural language (modification, succession, parallel, contrast, combination). These five semantic structures are independent of the grammatical expression styles of specific natural languages such as Chinese, English, French, or Japanese.

            Natural Language Examples:
            Example: The manA who is tallB and wearing a hatC               (A←B←C)
            Example: He gets upA, dressesB, and goes outC                    (A→B→C)
            Example: I like applesA, bananasB, and orangesC                  {A, B, C}
            Example: ChatGPTA, ClaudeB, and DeepSeekC are all AID, also called LLME
             (A+B+C ↦ D+E)
            Example: This flowerA + is beautifulB = This flower is beautifulA+B
            (A+B=AB)


In theory, the combination of these five primitive relationships can express the vast majority of logical relationships, offering considerable completeness.

Semantics Within Tokens

For logical relationships such as exclusion, quantifier ranges, or nested mappings, CML does not provide native support. Instead, these are delegated to the token layer, allowing flexible expression in conjunction with supplementary relationships to avoid structural pollution, which could introduce complexity in priority operations and human-readable comprehension.

This is because tokens themselves can also express structure.

            Natural Language Example: "His age is approximately 18~25 years old."
            Annotation:
            ❌ `age`:`range`:`18-25`
             (Illegal nesting and unnecessary, can be merged forward or backward)
            ❌ `age`:`>18`+`<25`
             (No need to split so finely)
            ✅ `age`:`range:18-25`
             (Nesting within the token aligns with natural semantics)
            ✅ `age`:`18-25`


This reflects the principle of minimalism in structure:

The CSE paradigm does not attempt to explicitly resolve all structural semantic ambiguities in advance. Instead, during actual expression, it leverages the semantic tokens connected by relationship delimiters as the context for relational semantics, allowing the LLM to infer the most reasonable semantic relationships and corresponding priority weights.

Core Value of Explicit Structure

Advocating the use of semantic structure expression within tokens also reflects the core value of CML in explicit encoding.

The reason CML is close to natural language but not equivalent to pure natural language lies in its necessity for declaring important semantics and its expressive requirements. Compared to the complete uncontrollability of token segmentation in natural language inference, the essence of explicit segmentation is to break down semantics into vertical hierarchies and horizontal relationships, thereby eliminating relational ambiguities and ultimately enhancing controllability and interpretability.
